Steel framed office block completed at London’s Pancras Square

The second to last building on the prestigious Pancras Square scheme, which forms an integral part of the Kings Cross development in north London, has been completed.

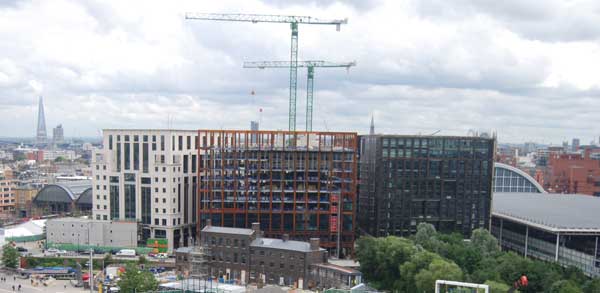

One of four buildings around the scheme to feature steelwork elements, Three Pancras Square (left in picture) is an 11-storey 15,230m² building offering office floor plates of 1,700m² over the 10 upper levels, while the ground floor houses a double height reception area.

Sitting atop a two-level reinforced concrete basement that connects into a shared podium, the building measures approximately 58m x 36m and 46m high to fit into the overall height scheme of the Square.

Steel starts at ground floor level and columns are generally spaced at 6m centres around the perimeter, with splices occurring on every second floor.

Fabsec cellular beams have been used throughout the project and span up to 13.5m, creating a near column-free internal space on every office floor.

Working on behalf of main contractor BAM Construction, Severfield fabricated, supplied and erected 1,900t of structural steelwork for the project.

Next door, the same construction team members are currently building Four Pancras Square (central in picture) and this building features a steel exo-skeleton. It will be the final building on Pancras Square and is due to be completed early next year.

Described as a new piece of London and boasting a brand new postcode, London N1C, the Kings Cross development will eventually include 50 new buildings, 2,000 new homes, 20 new streets and 10 new public squares spread over 67 acres.
